Model NO.: BRLED-N1 LED Street Light
Application: Highway, Square, Garden
IP Rating: IP66
Certification: CE, RoHS, CCC, ISO, FCC, EMC
Voltage: 12V, 24V, 110V, 220V
Lamp Choosing: 15W/24W/30W/42W/60W/70W/80W/100W/120W
Voltage Range: 12V, 24V, 110V, 220V
Lamp Chip Mark: CREE, Bridgelux, Epistar
LED Chip Brightness: 120lm, 140lm, 150lm, 160lm
Color Temperature: 2700-3300k;5000k-6500k
Warranty: 2 Years. 3 Years, 5 Years
Using Application: Highway, Square, Garden
Chip Material: CREE, Bridgelux, Epistar
Certificate: Ce, RoHS, CCC, UL, ISO, FCC, EMC, GS, Soncap, Pvoc
Application for: LED Street Light
Trademark: BR SOLAR; AS SOLAR
Transport Package: Carton
Specification: 9W-250W LED Street Light
Origin: China
HS Code: 94054090
Model NO.: BRLED-N1 LED Street Light
Application: Highway, Square, Garden
IP Rating: IP66
Certification: CE, RoHS, CCC, ISO, FCC, EMC
Voltage: 12V, 24V, 110V, 220V
Lamp Choosing: 15W/24W/30W/42W/60W/70W/80W/100W/120W
Voltage Range: 12V, 24V, 110V, 220V
Lamp Chip Mark: CREE, Bridgelux, Epistar
LED Chip Brightness: 120lm, 140lm, 150lm, 160lm
Color Temperature: 2700-3300k;5000k-6500k
Warranty: 2 Years. 3 Years, 5 Years
Using Application: Highway, Square, Garden
Chip Material: CREE, Bridgelux, Epistar
Certificate: Ce, RoHS, CCC, UL, ISO, FCC, EMC, GS, Soncap, Pvoc
Application for: LED Street Light
Trademark: BR SOLAR; AS SOLAR
Transport Package: Carton
Specification: 9W-250W LED Street Light
Origin: China
HS Code: 94054090
Starting choosing Bright Solar LED Street Light Technical Data (AC&DC)
Rated Power Luminous Flux Suitable for Pole Lighting Distance Central Illuminance Replace
15W/12V 1800LM 4M Height >12M >16LX 60W CFL
18W/12V 2160LM 5M Height >15M >18LX 80W CFL
20W/12V 2400LM 5M Height >15M >18LX 100W HPS
24W/12V 2880LM 6M Height >20M >22LX 120W HPS
30W/12V 3600LM 6M Height >20M >22LX 150W HPS
  3600LM 7-8M Height >20M >27LX 150W HPS
35W/12V 4200LM 8M Height >20M >26LX 160W HPS
36W/24V 4320LM 8M Height >20M >27LX 170W HPS
45W/24V 5400LM 8M Height >20M >30LX 200W HPS
50W/24V 6000LM 8M Height >20M >30LX 220W HPS
60W/24V 7200LM 8M Height >20M >32LX 250W HPS
8400LM 9-10M Height >25M >32LX 250W HPS
80W/24V 9600LM 8M Height >20M >35LX 400W HPS
11200LM 9-10M Height >30M >35LX 400W HPS
100W/24V 12000LM 8M Height >20M >38LX 400W HPS
14000LM 10M Height >40M >38LX 500W HPS
14000LM 12M Height >40M >38LX 500W HPS
120W/24V 14400LM 10M Height >40M >40LX 500W HPS
16800LM 12M Height >40M >40LX 600W HPS
LED Lamp Technical Data (AC)
Rated Power Luminous Flux Suitable for Pole Lighting Distance Central Illuminance Replace
130W 15600LM 10-12M Height >40M >40-45LX 600W HPS
140W 16800LM 10-12M Height >40M >40-45LX 600W HPS
150W 18000LM 10-12M Height >40M >40-45LX 600W HPS
160W 19200LM 10-12M Height >40M >40-45LX 700W HPS
170W 20400LM 10-12M Height >40M >40-45LX 700W HPS
180W 21600LM 10-12M Height >40M >45-50LX 800W HPS
200W 24000LM 10-12M Height >40M >45-50LX 1000W HPS

IP67 Warranty 5 Years 9W-250W High Power AC LED Street Light

LED Street Light Technical Descriptions:
1.)Lamp Body: High-Pressure Die-Casting Aluminum. Corrosion Resistant,IP65 or IP68
2.)Application with Polyester Substance in its Surface.
3.)Reflector: High Purity Aluminum or Stainless Steel SS304,Mirror Polish.
4.)LED Cooler: Aluminum Material, Producing By Module
5.)Cover Glass: High Strength and High Transparent Toughened Glass
6.)Fastener Bolt and Screws: Stainless Steel, Anti-theft screw
7.)Ambient Temp:-40~+50°C;Humidity:10%~95%
8.)Arm Diameter: 48 or 60mm
9.)Lumen:100-110LM/W;120-130LM/W;140-150LM/W;Lifespan:50000-100000Hrs
IP67 Warranty 5 Years 9W-250W High Power AC LED Street Light

IP67 Warranty 5 Years 9W-250W High Power AC LED Street Light

Producing Machine and Testing For Our LED Street Lamps:
Good Quality Depend On Good Machine
IP67 Warranty 5 Years 9W-250W High Power AC LED Street Light

Bright Solar Marked LED street light Packing And Shiping
IP67 Warranty 5 Years 9W-250W High Power AC LED Street Light


Bright Solar Brief Introduction Yangzhou Bright Solar Solutions Co., Ltd., Established in 1997, an ISO 9001: 2000, TUV, IEC, CE&EN, RoHS, SONCAP CCPIT and CCC approved manufacturer and Exporter.

Overseas Exploration and Popularity:

Our  solar street lights and solar lighting system had been successfully applied in more than 50 Countries such as the USA, UK, Canada, Germany, Spain, Greece, Italy, Sweden, France, Portugal, Cyprus, Romania, Croatia, Middle East, New Zealand, Fiji, Norway, Belgium, France, Italy, Australia, Turkey, Jordan, Iraq, UAE, India, Pakistan, Bangladesh, Qatar, Yemen, Singapore, Philippines, Cambodia, Nigeria, Congo, Mexico, etc.


IP67 Warranty 5 Years 9W-250W High Power AC LED Street Light Starting choosing Bright Solar LED Street Light Technical Data (AC&DC)
Rated Power Luminous Flux Suitable for Pole Lighting Distance Central Illuminance Replace
15W/12V 1800LM 4M Height >12M >16LX 60W CFL
18W/12V 2160LM 5M Height >15M >18LX 80W CFL
20W/12V 2400LM 5M Height >15M >18LX 100W HPS
24W/12V 2880LM 6M Height >20M >22LX 120W HPS
30W/12V 3600LM 6M Height >20M >22LX 150W HPS
  3600LM 7-8M Height >20M >27LX 150W HPS
35W/12V 4200LM 8M Height >20M >26LX 160W HPS
36W/24V 4320LM 8M Height >20M >27LX 170W HPS
45W/24V 5400LM 8M Height >20M >30LX 200W HPS
50W/24V 6000LM 8M Height >20M >30LX 220W HPS
60W/24V 7200LM 8M Height >20M >32LX 250W HPS
8400LM 9-10M Height >25M >32LX 250W HPS
80W/24V 9600LM 8M Height >20M >35LX 400W HPS
11200LM 9-10M Height >30M >35LX 400W HPS
100W/24V 12000LM 8M Height >20M >38LX 400W HPS
14000LM 10M Height >40M >38LX 500W HPS
14000LM 12M Height >40M >38LX 500W HPS
120W/24V 14400LM 10M Height >40M >40LX 500W HPS
16800LM 12M Height >40M >40LX 600W HPS
LED Lamp Technical Data (AC)
Rated Power Luminous Flux Suitable for Pole Lighting Distance Central Illuminance Replace
130W 15600LM 10-12M Height >40M >40-45LX 600W HPS
140W 16800LM 10-12M Height >40M >40-45LX 600W HPS
150W 18000LM 10-12M Height >40M >40-45LX 600W HPS
160W 19200LM 10-12M Height >40M >40-45LX 700W HPS
170W 20400LM 10-12M Height >40M >40-45LX 700W HPS
180W 21600LM 10-12M Height >40M >45-50LX 800W HPS
200W 24000LM 10-12M Height >40M

9V power supply from the power transformer, rectifier circuit, shell composition:

1. Shell material using high temperature fire retardant materials;

2. Constant pressure working mode.

3. Brand IC design, stable and reliable performance;


We offering various 9V Desktop Switching Power Supply, AC/DC Power Adapter for smart phone, laptop, tablet, LED display, electric tool, humidifier, juice extractor, coffee machine, small household appliance, fingerprint scanner, CCTV camera-etc. Modified and custom design are available,we have our own professional R&D team to fulfill different customer's needs.

application 2

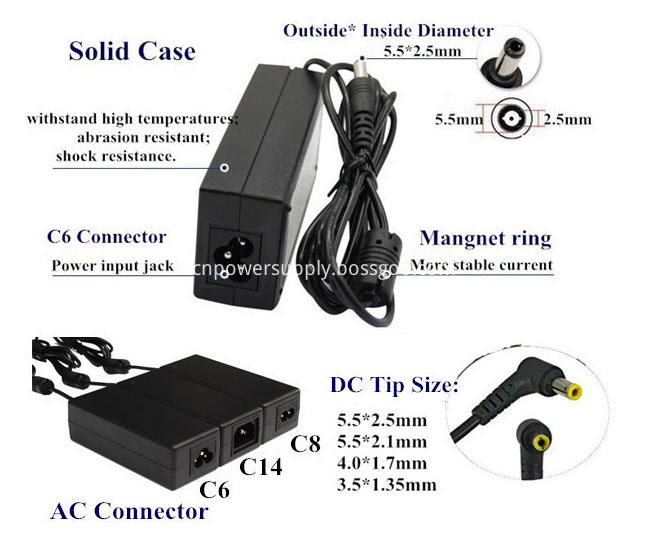

9V Desktop Switching Power Supply

9V Dc Adapter,9V Power Adapter,Power Supply 9V,9V Dc Power Supply

Shenzhen Juyuanhai Electronic Co., Ltd. , http://www.powersupplycn.com
