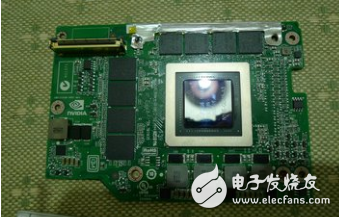

Count 5 graphics card terms

2. Process: The term "process" refers to the size and precision of the manufacturing process used for integrated circuits. Smaller process sizes generally mean more advanced technology. For example, a 0.18-micron processor is bulkier and less efficient compared to a 0.13-micron one, as smaller transistors consume less power and generate less heat. Additionally, smaller processes allow components to be placed closer together, reducing data transmission time and enabling higher clock speeds.

The terms "micron" and "nanometer" are often used interchangeably when describing the process. One nanometer equals 0.001 microns, so a 0.09-micron process is also referred to as a 90-nanometer process. In general, smaller processes lead to higher frequencies. For instance, a GPU built on a 0.09-micron process typically runs faster than one using a 0.18-micron process.

3. Core Frequency: The core frequency of a GPU is measured in megahertz (MHz) and represents the number of cycles per second. Higher core frequencies usually translate to better performance, as the GPU can complete more operations in a given time. However, it's important to note that the architecture of the GPU also plays a significant role in real-world performance, so core frequency alone isn't always the best indicator of speed.

4. Memory Size: Video memory (VRAM) is often considered the most overrated factor when it comes to graphics performance. Many consumers assume that more VRAM means a better graphics card, but this isn't always true. Other factors like memory bandwidth and clock speed have a bigger impact on overall performance. In most cases, a 128 MB VRAM card performs similarly to a 256 MB one. However, in specific applications that require high-resolution textures, more memory can be beneficial.

Increasing VRAM allows for higher-resolution textures, which can enhance visual quality in games. Game developers often use multiple texture sets, and having more memory enables the use of higher-quality textures, resulting in sharper visuals on screen.

5. Memory Bit Width: Memory bit width, or bus width, is one of the most important factors affecting memory performance. Most modern graphics cards have a memory bus width ranging from 64 to 256 bits, with high-end models reaching up to 512 bits. A wider bus allows more data to be transferred per cycle, significantly improving performance.

For example, a 128-bit bus transfers twice as much data as a 64-bit bus, while a 256-bit bus transfers four times as much. This means that at the same clock speed, a 256-bit bus can transfer data four times faster than a 64-bit one. Therefore, memory bus width is more critical than memory size. A 256-bit 128 MB graphics card often outperforms a 64-bit 512 MB one due to its superior bandwidth.
