Introduction to ADAU1701:

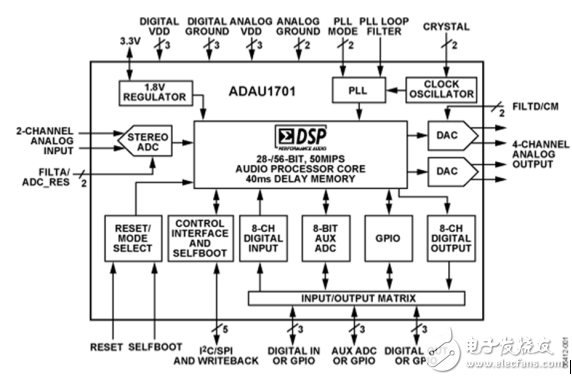

The ADAU1701 is a powerful, all-in-one audio solution that integrates a 28/56-bit digital signal processor (DSP), ADCs, DACs, and a microcontroller-like control interface into a single chip. It offers advanced signal processing capabilities such as balance, mixing, bass enhancement, multi-band dynamic processing, delay compensation, and stereo image expansion. These features help overcome real-world limitations in speakers, amplifiers, and listening environments, ultimately delivering a more immersive and high-quality audio experience.
The signal processing in the ADAU1701 is comparable to that found in high-end audio equipment. Most of the processing occurs in full 56-bit double-precision mode, ensuring excellent performance even at low signal levels. As a fully programmable DSP, it allows users to customize their audio processing flow using SigmaStudio, a user-friendly graphical software. With SigmaStudio, you can easily configure filters, dynamics, level controls, and GPIO interfaces through a visual approach.
The ADAU1701 can be programmed either from an external microcontroller or via a serial EEPROM using its self-booting mechanism. Upon power-up, it can also store the current configuration back to the EEPROM, making it easy to recall settings for future use.
The device includes two ∑-Δ ADCs and four ∑-Δ DACs, offering a dynamic analog output with a 98.5 dB input range. Each ADC has a THD + N of -83 dB, while each DAC achieves -90 dB. The digital I/O ports support seamless integration with other ADCs and DACs without requiring additional glue logic. Communication is handled through I2C or a 4-wire SPI port, providing flexibility in system design.
Key Features and Advantages:
- 28-/56-bit, 50 MIPS digital audio processor
- 2 ADCs: SNR 100 dB, THD + N: -83 dB
- 4 DACs: SNR 104 dB, THD + N: -90 dB
- Fully independent operation
- Auto-boot from serial EEPROM
- Auxiliary ADC with 4 input multiplexers for analog control
- General-purpose GPIO for digital control and output
- Fully programmable SigmaStudioâ„¢ tool
- 28 x 28 bit multiplier with 56-bit accumulator for full double precision
- Crystal-based clock oscillator with PLL support (64x to 512x fS)
- I2S-compatible, flexible serial data I/O ports (left/right-aligned and TDM modes)
- Supports up to 192 kHz sampling rate
- Built-in 3.3V voltage regulator
- 48-pin plastic LQFP package
Chip Pin Diagram:
